Categories	AC/DC solar-powered QD submersible pump
Trademark/Brand	TOPN Solar Water Pump Manufacturer
Model	TPQD-AC/DC series
Material	iron
Type	AC/DC Solar Submersible pump
Certificate	CE, ISO9001
Warranty	18months
MOQ	1 set
FOB port	Ningbo/Shanghai
Terms of Payment	L/C, T/T, Paypal
Update Time	Dec 13,2025

Detail Information

AFTER-SALES SERVICE AND STOCK

Advantages of Solar Powered Surface Water Pumps For Irrigation:

1. ACDC Brushless Permanent-magnetic synchronous motor for solar powered submersible dc water pump to get high speed and high efficiency.

2. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.

3. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.

4. Controller: MPPT function; frequency conversion function; Automatically working function; waterproof and leak-proof.

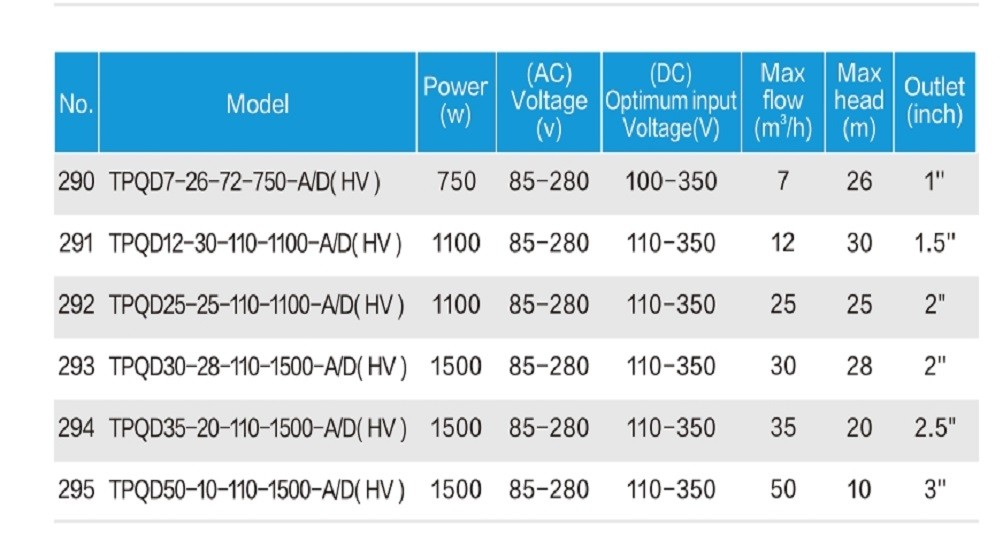

TECHNICAL DATA

NO.	Model	Power(W)	(AC)Voltage(V)	(DC)Optimum input Voltage(V)	Max flow(m³/h)	Max head(m)	Outlect（inch）
290	TPQD7-26-72-750-A/D	750	85-280	110-350	7	26	1"
291	TPQD12-30-110-1100-A/D	1100	85-280	110-350	12	30	1.5"
292	TPQD25-25-110-1100-A/D	1100	85-280	110-350	25	25	2"
293	TPQD30-28-110-1500-A/D	1500	85-280	110-350	30	28	2"
294	TPQD35-20-110-1500-A/D	1500	85-280	110-350	35	20	2.5"
295	TPQD50-10-110-1500-A/D	1500	85-280	110-350	50	10	3"

PERFORMANCE CURVES

Applications of Low Cost Solar Water Pump:

1. Solve domestic drinking water

2. Small scale service industries

3. Pond management

4. Gardens or fountains

5. Livestock watering(solar powered water pump for cattle)

How to Choose the Correct Roto Solar Water Pumps Kit Price?

Head Calculate:

1. Distance of 'B+C+D/10' if have a water tank

2. Distance of 'B' if without water tank

Flow Calculate:

How much water per hour or per day do you want?

Selecting the solar pump model that meets your requirements against the pump model number table.

How to Connect the Solar Water Pump

Working Environment and Electrical Property

Controller and Pump Matching Method
Controller Model	Adaptable Pump	Max. Input Current(A)	Max. Open Circuit Viltage(V)	Optimum MPPT Voltage Range(V)	Working Temperature(°C)
TP-24	Rated 24V Pump	17	<50	30-48	-15-60
TP-48	Rated 48V Pump	17	<100	60-90	-15-60
TP-72	Rated 72V Pump	17	<150	90-120	-15-60
TP-96	Rated 96V Pump	17	<200	110-150	-15-60
TP-72-A/D	Rated 72V-A/D Pump	17	<430	100-350	-15-60
TP-110-A/D	Rated 110V-A/D Pump	17	<430	110-350	-15-60
TP-200-A/D	Rated 200V-A/D Pump	17	<430	200-350	-15-60
TP-245-A/D	Rated 245V-A/D Pump	17	<430	245-350	-15-60
TP-300-A/D	Rated 300V-A/D Pump	17	<430	300-350	-15-60
TP-520-A/D	Rated 520V-A/D Pump	17-56	<430	520-650	-15-60
TP-110-A/D	Rated 110V-A/D Pump	17	<430	110-350	-15-60
TP-200-A/D	Rated 200V-A/D Pump	17	<430	200-350	-15-60
TP-245-A/D	Rated 245V-A/D Pump	17	<430	245-350	-15-60
