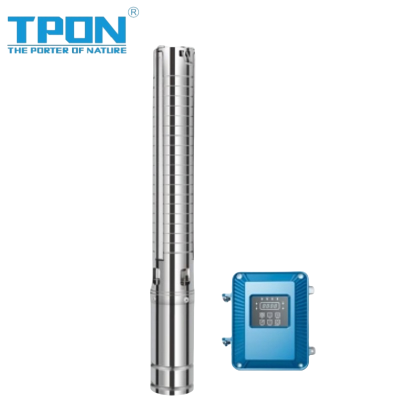

3 Inch Solar Deep Well Pump with Stainless Steel Impeller | Submersible Solar Water Pump Kit |Livestock Agriculture Irrigation |Factory Manufacturer | OEM/ODM

3 Inch Solar Deep Well Pump with Stainless Steel Impeller | Submersible Solar Water Pump Kit |Livestock Agriculture Irrigation |Factory Manufacturer | OEM/ODM

3 Inch Solar Deep Well Pump with Stainless Steel Impeller | Submersible Solar Water Pump Kit |Livestock Agriculture Irrigation |Factory Manufacturer | OEM/ODM
3 Inch Solar Deep Well Pump with Stainless Steel Impeller | Submersible Solar Water Pump Kit |Livestock Agriculture Irrigation |Factory Manufacturer | OEM/ODM3 Inch Solar Deep Well Pump with Stainless Steel Impeller | Submersible Solar Water Pump Kit |Livestock Agriculture Irrigation |Factory Manufacturer | OEM/ODM3 Inch Solar Deep Well Pump with Stainless Steel Impeller | Submersible Solar Water Pump Kit |Livestock Agriculture Irrigation |Factory Manufacturer | OEM/ODM3 Inch Solar Deep Well Pump with Stainless Steel Impeller | Submersible Solar Water Pump Kit |Livestock Agriculture Irrigation |Factory Manufacturer | OEM/ODM
Categories3 Inch ACDC Deep Well Solar Water Pump
BrandTOPN Solar Water Pump Manufacturer
Model3TPSC Series
MaterialStainless steel
Type3 Inch Solar Well Pump with Stainless Steel Impell
CertificateCE, ISO9001
Warranty18 months
MOQ1 set
FOB portNingbo/Shanghai
Terms of PaymentL/C, T/T, Paypal
Download
Update TimeDec 8,2024
Detail Information
tpon solar pump
Advantages of Best Small Solar Water Pump:
1. ACDC Brushless Permanent-magnetic synchronous motor for solar power submersible dc water pump to get high speed and high efficiency.
2. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
3. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.
4. Controller: MPPT function; frequency conversion function; Automatically working function; waterproof and leak-proof.
5.Our portable lewisia solar pond water pump kit kenya is comparable to lorentz solar water pumps usa.
TECHNICAL DATA
NO.
Model
Power(w)
AC Voltage(v)
DC Voltage(v)
Max flow(m³/h)
Max head(m)
Outlet(inch)
96
3TPSC4.8-95-110-750-A/D
750
85-280
80-430
4.8
95
1.25
97
3TPSC4.8-110-150-1100-A/D
1100
85-280
80-430
4.8
110
1.25
98
3TPSC4.8-130-200-1500-A/D
1500
85-280
80-430
4.8
130
1.25
PERFORMANCE CURVES
TPON Solar Pump
Applications of Submersible Solar Water Pump Kit:
1. Solve domestic drinking water
2. Small scale service industries
3. Agriculture and garden irrigation
How to Choose the Correct Solar Water Pump?
Head Calculate:
1. Distance of 'B+C+D/10' if have a water tank
2. Distance of 'B' if without water tank

Flow Calculate:
How much water per hour or per day do you want?
Selecting the solar pump model that meets your requirements against the pump model number table.
TPON Solar Pump
How to Connect the Solar Water Pump
TPON Solar Pump
TPON Solar Pump
Working Environment and Electrical Property
Controller and Pump Matching Method
Controller Model
Adaptable Pump
Max. Input Current(A)
Max. Open Circuit Voltage(V)
MPPT Voltage Range(V)
Working Temperature(°C)
TP-24
Rated 24V pump
17
<48
30-48
-15-60
TP-48
Rated 48V pump
17
<100
60-90
-15-60
TP-72
Rated 72V pump
17
<150
90-120
-15-60
TP-96
Rated 96V pump
17
<200
110-150
-15-60
TPON Solar Pump
A set of specifications (Package include):

ACDC brushless solar Pump with 2m cable *1
Pump controller with MPPT function*1
Installation kit bag*1  (Inlucde teflon tape,insulation tape,heat-shrinkable tube,screwdriver,screw and nut,connection terminal)
TPON Solar Pump
TPON Solar Pump
About after-service:

 1. We provide 1 years warranty for solar pumps and MPPT controllers.

 2.  We will recommend the suitable solar panels for each solar pump.

 3.  Any installation question, we will provide the connection diagram or installation video for your reference.

 4.  Any installation question, we will provide the connection diagram or installation video for your reference.
TPON Solar Pump
About stock:

 1.  We have stocks of hot-selling models, such as 3 inch, 4 inch pump with plastic or stainless steel impeller.

 2.  If you become our long-term stable distributor, we will prepare your own brand of MPPT controller stock for you.
