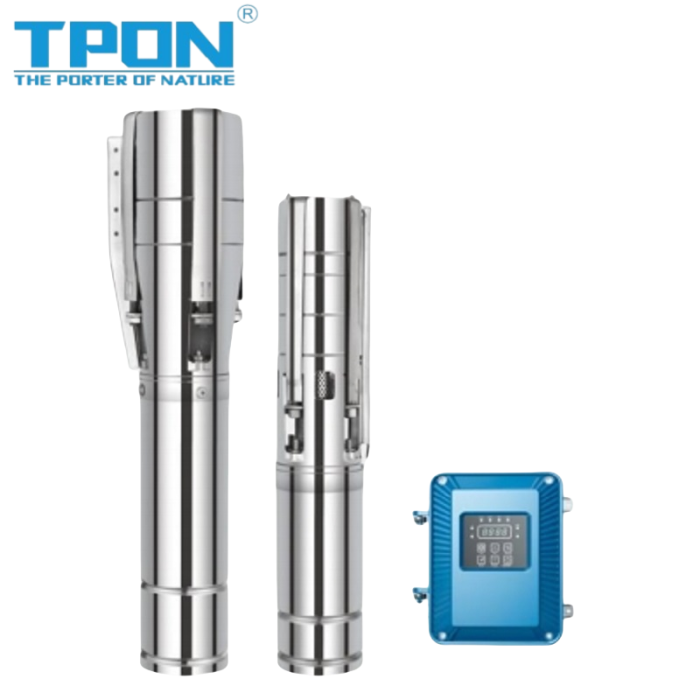

4/6 Inch Stainless Steel Solar Powered Submersible Water Pump DC large flow Irrigation Solar Pump

4/6 Inch Stainless Steel Solar Powered Submersible Water Pump DC large flow Irrigation Solar Pump

4/6 Inch Stainless Steel Solar Powered Submersible Water Pump DC large flow Irrigation Solar Pump
4/6 Inch Stainless Steel Solar Powered Submersible Water Pump DC large flow Irrigation Solar Pump4/6 Inch Stainless Steel Solar Powered Submersible Water Pump DC large flow Irrigation Solar Pump4/6 Inch Stainless Steel Solar Powered Submersible Water Pump DC large flow Irrigation Solar Pump4/6 Inch Stainless Steel Solar Powered Submersible Water Pump DC large flow Irrigation Solar Pump4/6 Inch Stainless Steel Solar Powered Submersible Water Pump DC large flow Irrigation Solar Pump
Categories4/6 Inch Solar Well Pump with Stainless Steel Impeller
BrandTOPN Solar Water Pump Manufacturer
Model4/6TPSC Series
MaterialStainless steel
Type4/6 Inch Solar Well Pump with Stainless Steel Impe
CertificateCE, ISO9001
Warranty1 year
MOQ1 set
FOB portNingbo/Shanghai
Terms of PaymentL/C, T/T, Paypal
Download
Update TimeDec 8,2024
Detail Information
Advantages of DC HP Solar Deep Well Water Pump Philippines:
1. DC Brushless Permanent-magnetic synchronous motor for solar powered submersible dc water pump to get high speed and high efficiency.
2. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
3. Intelligent water shortage protection: the pump stops working automatically when there is no water in the well, and automatically starts working 30 minutes later.
4. Controller: MPPT function; frequency conversion function; Automatically working function; waterproof and leak-proof.
TECHNICAL DATA
NO.
Model
Power(w)
DC Voltage(v)
Max flow(m³/h)
Max head(m)
Outlet(inch)
76
4/6TPSC30-19-72-1100
1100
72
30
19
3
77
4/6TPSC36-22-96-1500
1500
96
36
22
3
PERFORMANCE CURVES
Tpon Solar Pump
Applications of Solar Water Feature Pump Kit:
1. Solve domestic drinking water
2. Small scale service industries
3. Agriculture and garden irrigation
4. Low flow solar water pump
How to Choose the Correct Solar Powered Water Filter Pump?
Head Calculate:
1. Distance of 'B+C+D/10' if have a water tank
2. Distance of 'B' if without water tank

Flow Calculate:
How much water per hour or per day do you want?
Selecting the solar pump model that meets your requirements against the pump model number table.
Tpon Solar Pump
How to Connect the Solar Water Pump
Tpon Solar Pump
Tpon Solar Pump
Working Environment and Electrical Property
Controller and Pump Matching Method
Controller Model
Adaptable Pump
Max. Input Current(A)
Max. Open Circuit Viltage(V)
MPPT Voltage Range(V)
Working Temperature(°C)
TP-24
Rated 24V pump
17
<48
30-48
-15-60
TP-48
Rated 48V pump
17
<100
60-90
-15-60
TP-72
Rated 72V pump
17
<150
90-120
-15-60
TP-96
Rated 96V pump
17
<200
110-150
-15-60
Tpon Solar Pump
A set of specifications (Package include):

DC brushless solar Pump with 2m cable *1
Pump controller with MPPT function*1
Installation kit bag*1  (Inlucde teflon tape,insulation tape,heat-shrinkable tube,screwdriver,screw and nut,connection terminal)
Tpon Solar Pump
Tpon Solar Pump
About after-service:

 1. We provide 1 years warranty for solar pumps and MPPT controllers.

 2.  We will recommend the suitable solar panels for each solar pump.

 3.  Any installation question, we will provide the connection diagram or installation video for your reference.

 4.  Any installation question, we will provide the connection diagram or installation video for your reference.
Tpon Solar Pump
About stock:

 1.  We have stocks of hot-selling models, such as 3 inch, 4 inch pump with plastic or stainless steel impeller.

 2.  If you become our long-term stable distributor, we will prepare your own brand of MPPT controller stock for you.
